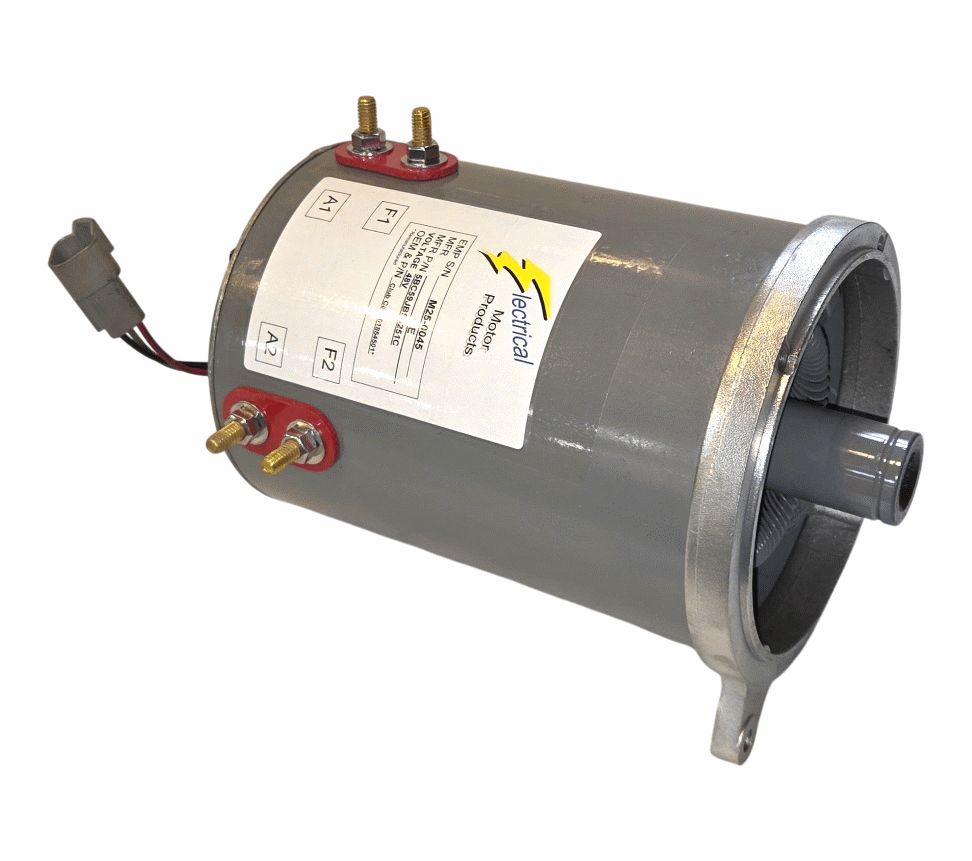

Club Car 48v Series DC, GE 5BC58JBS6221B, 101785702 Remanufactured

48v Club Car Series GE model number 5BC58JBS6221B, Club Car part number 101785702.  Rebuilt to factory specifications .  The OEM rubber spline bumper should be eliminated during installation of this motor to avoid damage to the armature & bearing.

THE NATURE OF A SERIES DC MOTOR/SERIES CART SYSTEM:  Series cart systems are very sensitive to changes in load.  The most noticeable time you would see this is on hilly terrain.  A series cart will slow down as you start to climb a hill and will slow down even more the steeper the grade.  When you begin to go downhill, the speed will increase, even to the point of being dangerous if the terrain is steep.  The driver should use the brakes to avoid motor overspeed as the motor will not limit the speed.  Unfortunately, these reactions are the nature of a series DC motor. While we might be able to make this slightly more or less sensitive, this nature will be present no matter what custom design we provide.  Be cautious when working with a series cart.  Never operate a series motor, especially at full voltage, with little to no load (wheels up).  If you want to make sure a series motor works after servicing the vehicle, depress the throttle only about 10% to avoid damage that would not be considered a warranty claim.

Expected top speed on stock Club Car, 48V (lead acid battery pack), 18″ tires, driver only in free still air on hard flat level ground is 18-19 MPH.  Slightly higher top speed expected with appropriate lithium ion battery pack due to slightly higher voltage and reduced weight.  Similarly, larger OD tires will increase top speed, but not “linearly”…. i.e.  changing to a tire 20% larger in OD will not increase top speed by 20%.  (For example, 22” tires, lead acid pack, 200# driver only, free still air, flat level ground calculated top speed ~20-22 MPH.)
